| Model | P2.5(GOB) |
| Pixel Pitch(mm) | 2.5 |
| Pixel Density | 1,60,000 |

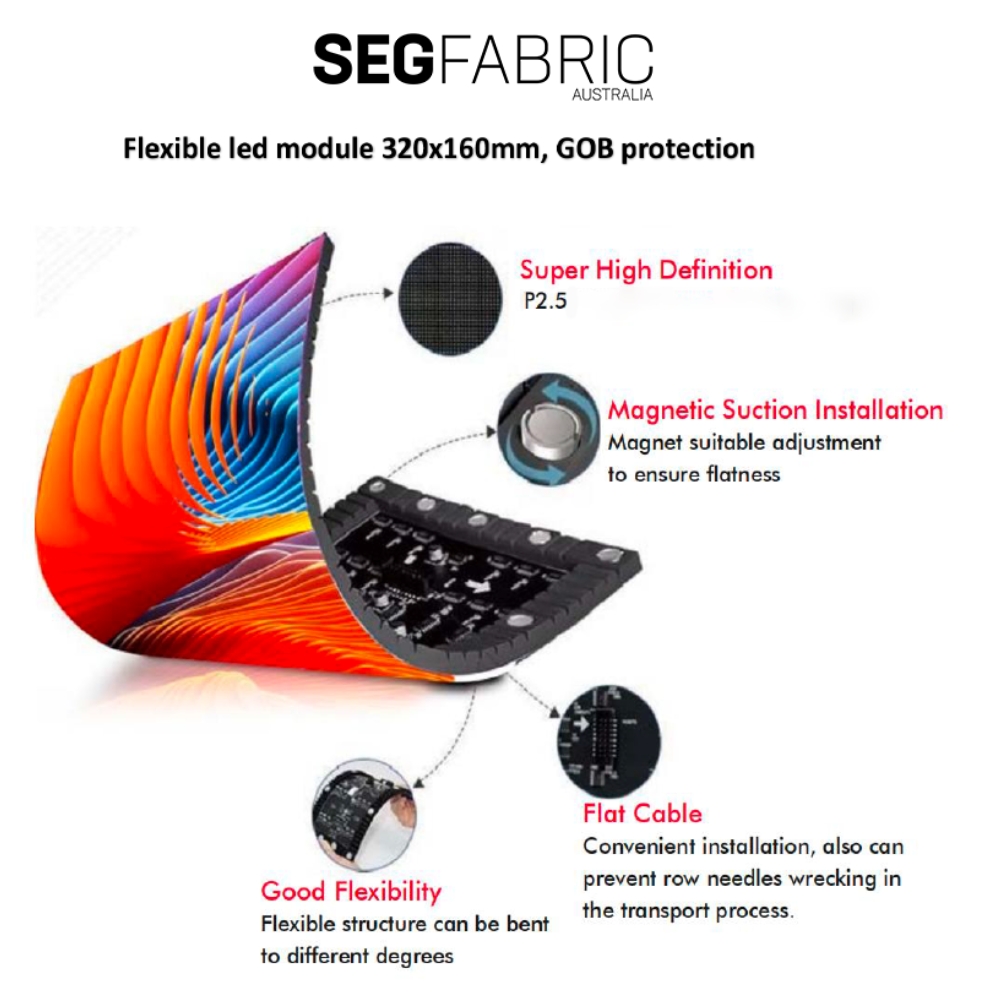

| Module Size(WxHxD) | 320x 160x15mm |
| LED Type | SMD1515 |
| Module Resolution(dots) | 128×64 |
| Module Arrangement (per cabinet) | 6x6pcs |
| Screen Size (WxH) | 1920x960mm |

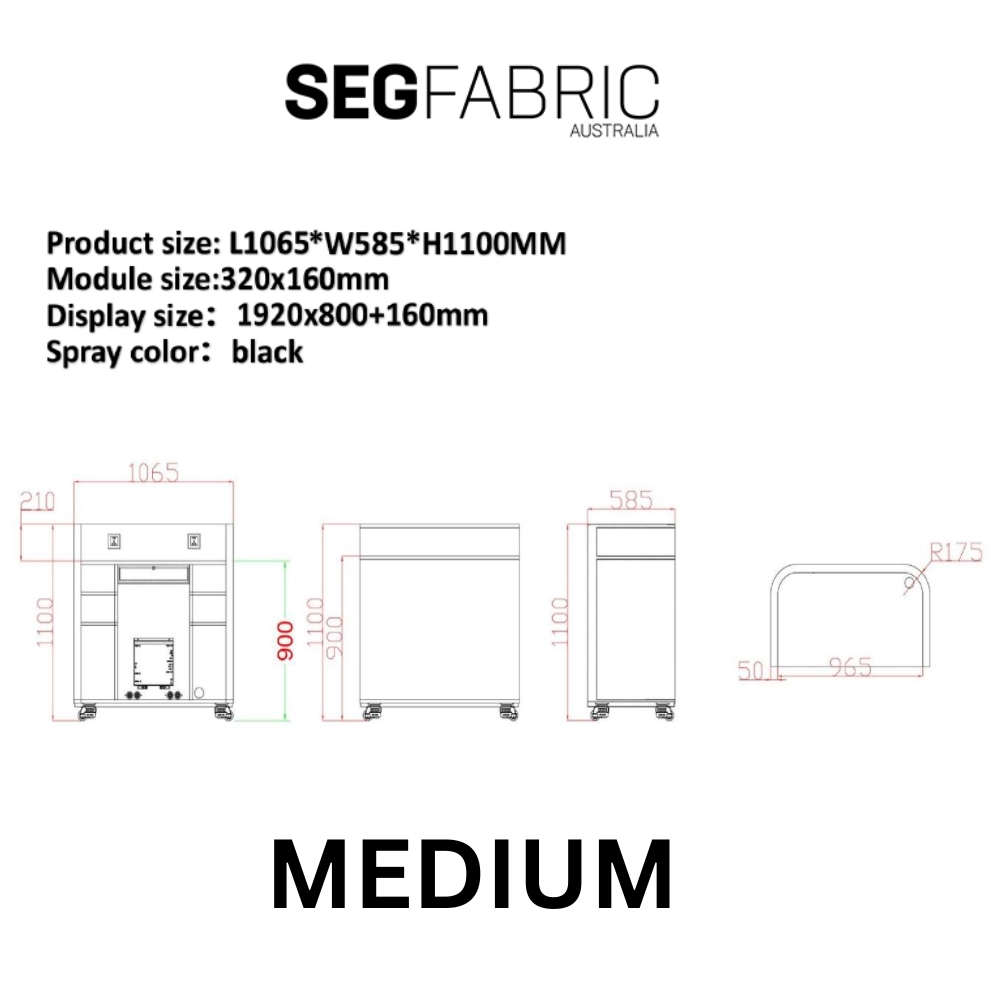

| Cabinet Size (WxHxD) | 1280x 1095x500 mm |
| Cabinet Weight | 97kg/pc |
| Cabinet Resolution(dots) | 768x384 |
| Scanning Mode | 32 |
| Best Viewing Distance (m) | ≥2.5 |
| Brightness | 600 nits |
| Refresh Rate | 3,840Hz |
| Grey Scale | 16bit |
| Max./Avg. Power Consumption | Max. 600w/pcs,Avg.200w/pcs |
| Viewing Angle | 160°(H)/160°(V) |

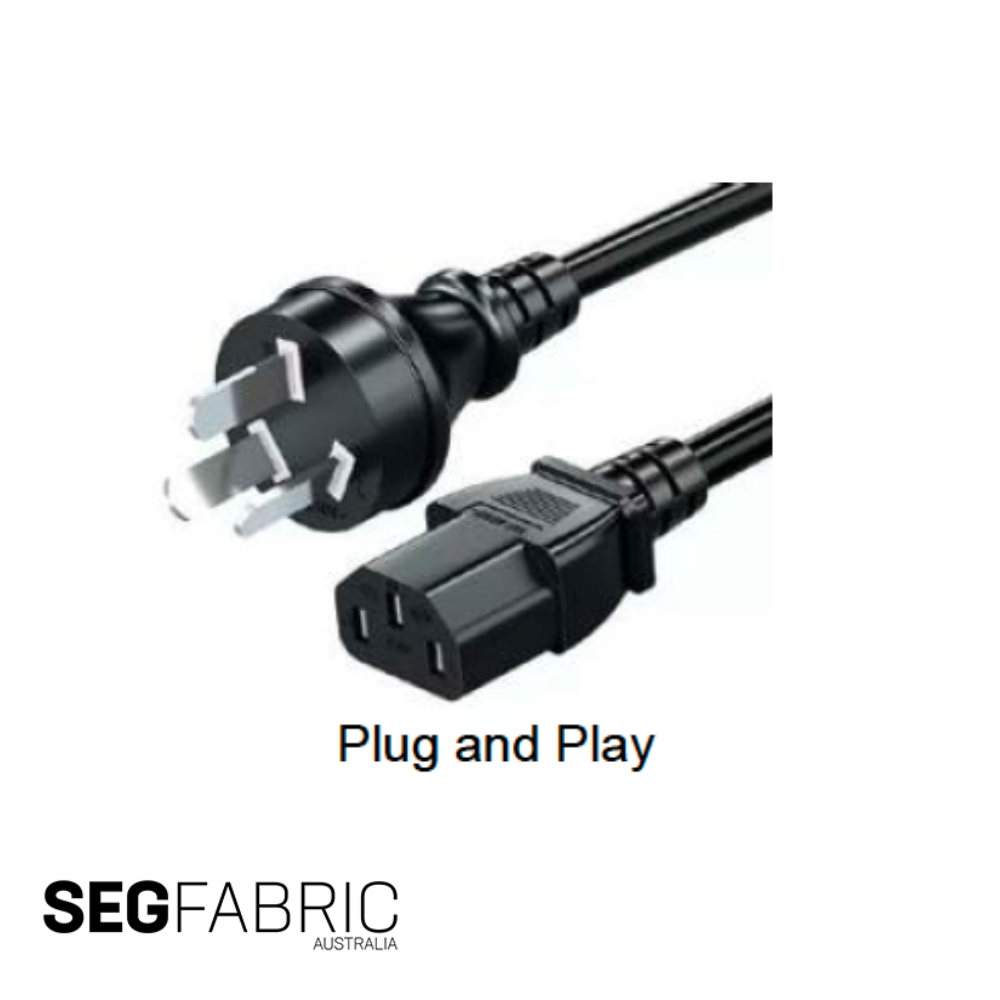

| Working Voltage (input) | AC110-240V@50/60Hz |
| Operating Temperature | -20-50°C, 10%-90RH |
| IP Rating | IP30 |

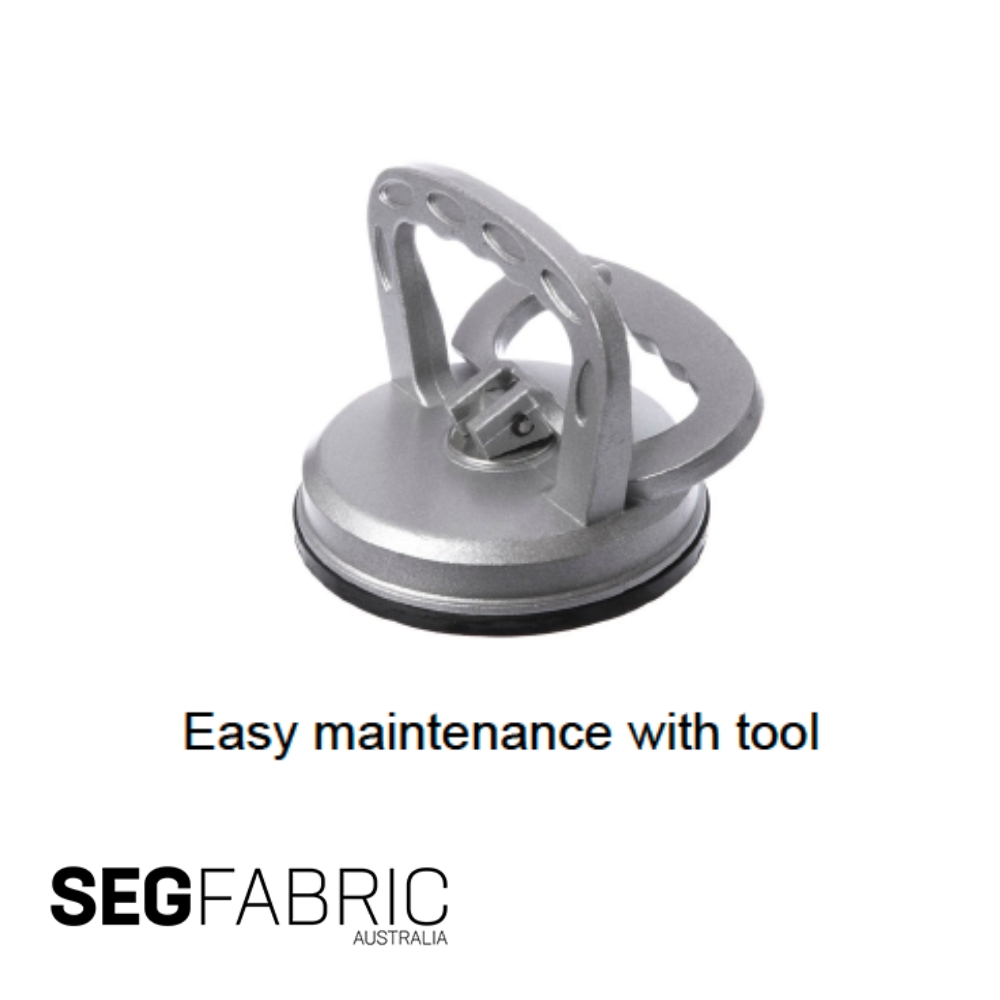

| Maintenance | Front Maintain |

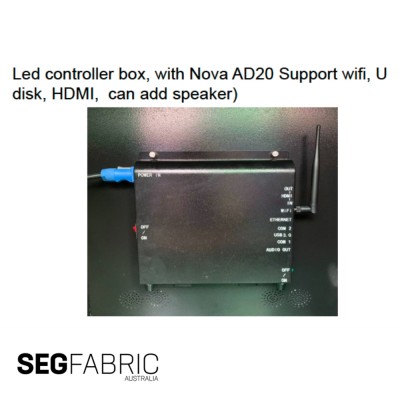

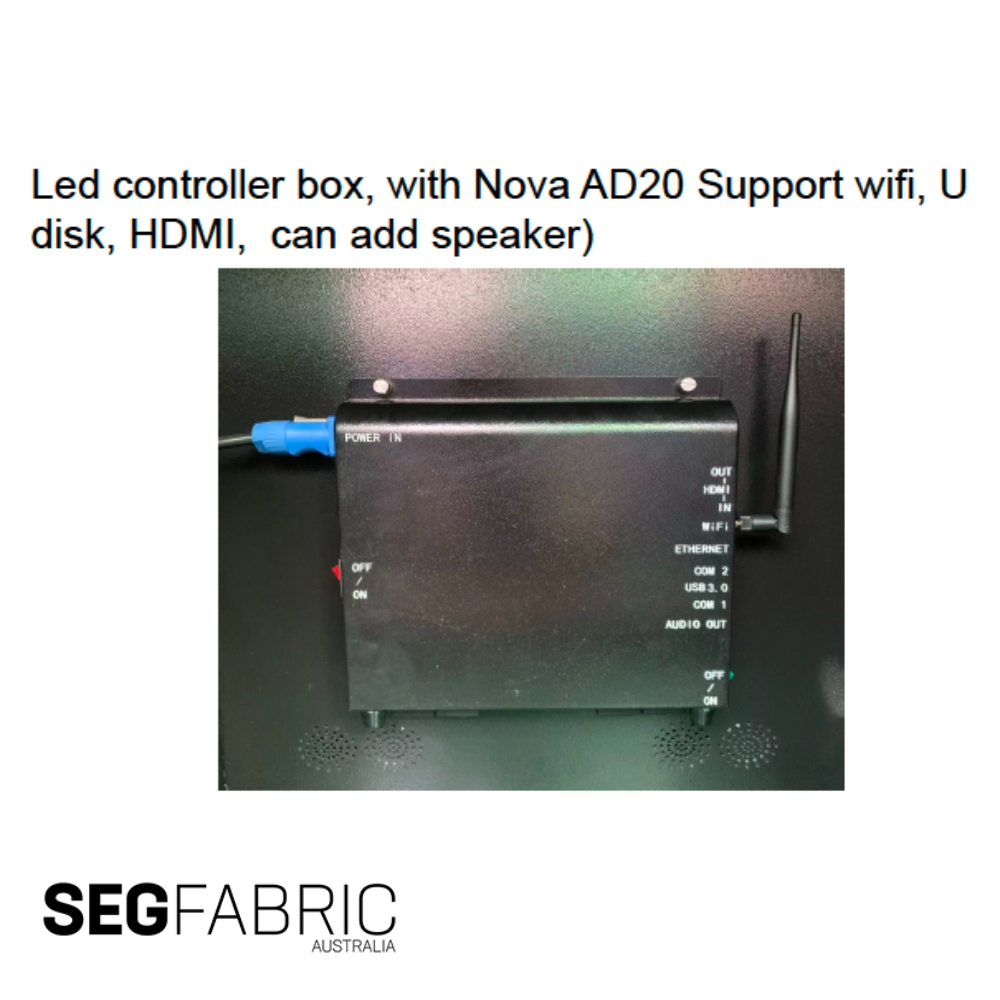

| Operate System | Novastar |
| Certification | ETL, FCC, CCC, ROHS, CE |
